OEM

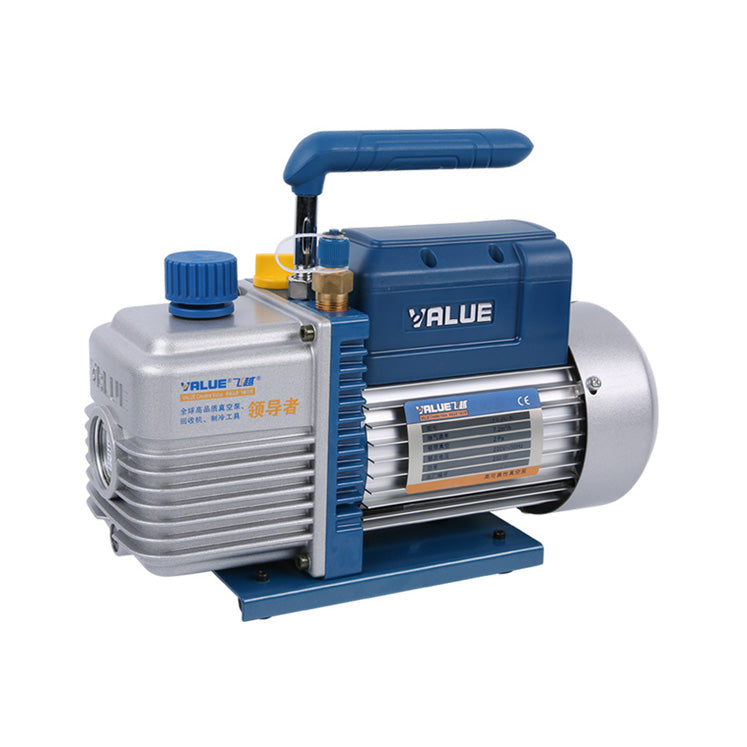

Portable Vacuum Pump for Laminating Machine
Model:FY-2C-N
Quantity:
High-performance new refrigerant vacuum pump vacuum tool, for mobile phone screen laminating machine
Tip:
- FY-2C-N is suitable for 1 hp, 1.5 hp and 2 hp fixed frequency air conditioners
- FY-4C-N is suitable for 1 hp, 1.5 hp, 2 hp, 3 hp, 5 hp fixed frequency air conditioner
Feature
- Integral cylinder structure with high precision and high ultimate vacuum
- High precision Vacuum gauge for accurate readings
- Solenoid Valve structure to prevent backflow absolutely
Specification
| Model | FY-2C-N | FY-4C-N |
| Rated voltage | 110V/220V | 110V/220V |
| Extraction rate | 7.2m3/h | 14.4m3/h |
| Ultimate pressure | 2Pa | 2Pa |
| Motor power | 250W | 550W |
| Refueling volume | 250ml | 660ml |
| Overall dimension | 318*124*234mm | 395*145*257mm |
| weight | 8.1 Kg | 14.7Kg |
| Air intake connection thread | 7/16" -20UNF | 7/16M -20&5/8-18UNF |
Packing List
Note that air shipments do not contain liquids
