UV Cold Laser Machine for LCD Frame Bracket Separation
UV Cold Laser Machine for LCD Frame Bracket Separation
UV Cold Laser Machine for LCD Frame Bracket Separation

M-Triangel

UV Cold Laser Machine for LCD Frame Bracket Separation

Sale price$2,699.00 Regular price$3,599.00
Save $900.00
Quantity:

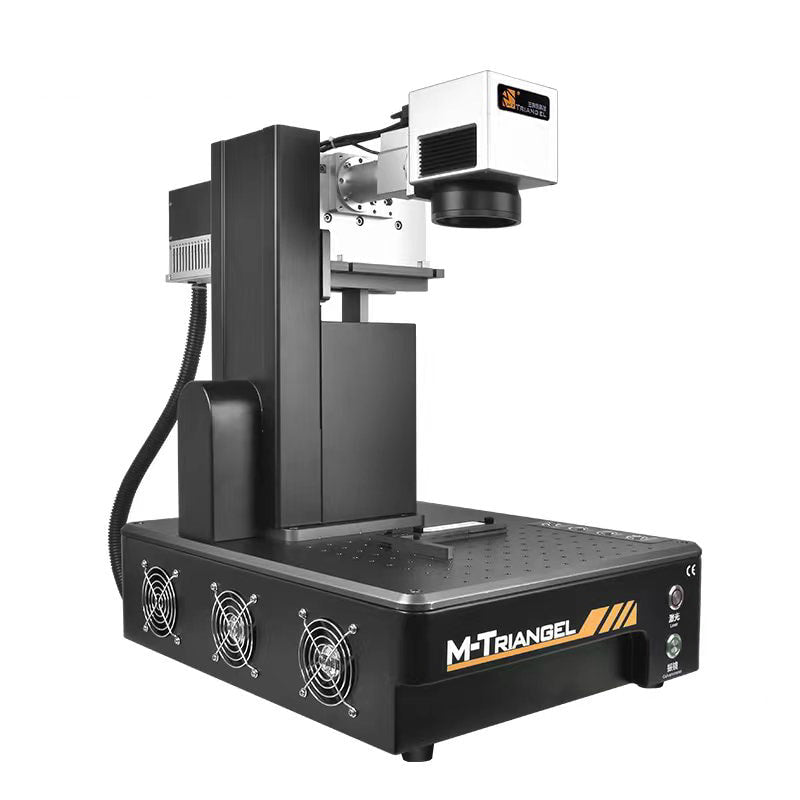

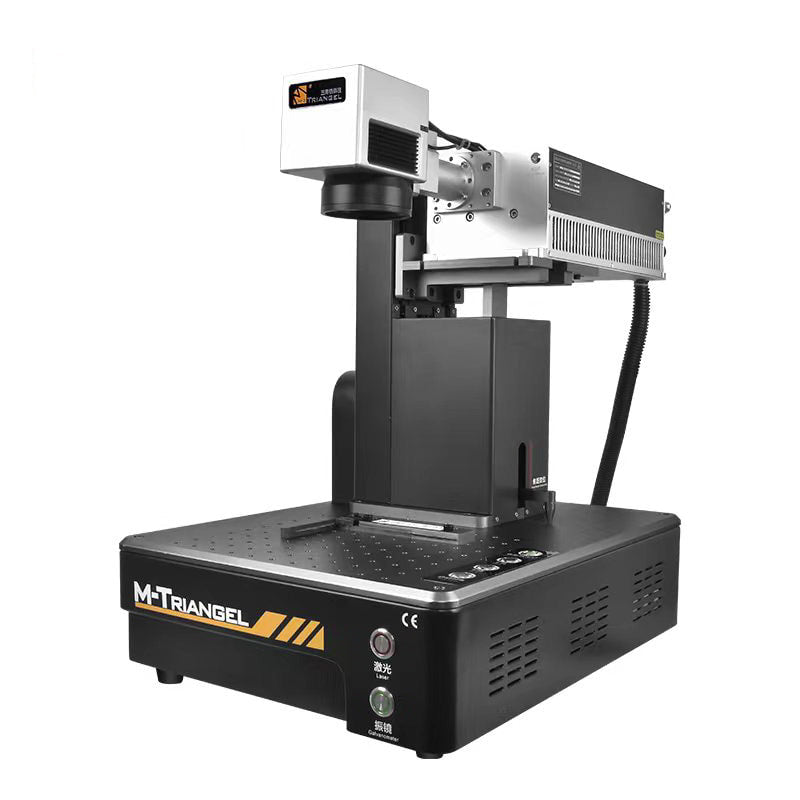

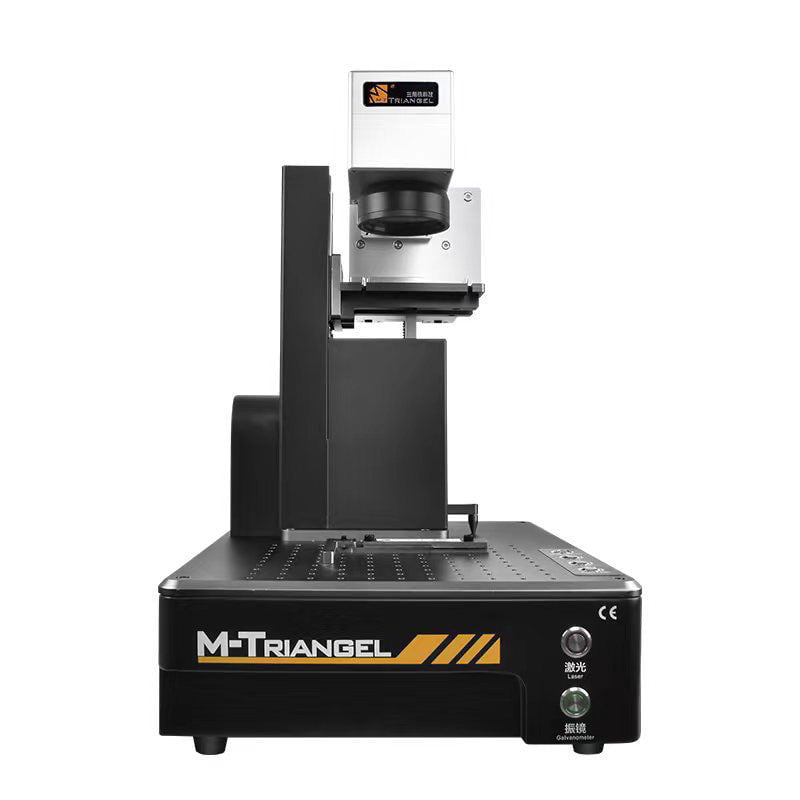

Designed for repairing cell phone displays, the M-Triangel UV cold laser machine can nondestructively separate the display's mount (frame or inner bezel) and even directly remove the LCD touch panel and outer glass.

NOTE:

  1. Ultraviolet laser can be safely used to separate the outer bezel; separating the entire outer glass will result in damage to the touch panel.
  2. Ultraviolet laser is used to separate iPhone back glass with low efficiency, it is recommended to use fiber laser.
  3. The product customization period is 10 days

Features

  1. Ultraviolet cold laser, no damage to the display
  2. Compact design, easy to operate.
  3. High-quality brand parts, stable performance and long life.
  4. Wide range of applications: wood/plastic/nano/leather/cloth/acrylic/PVC, etc.

uv laser application

Specification:

  • Machine power: ≤ 800w
  • Working temperature :-10°c~65°c
  • Cooling method : Built-in air cooling
  • Laser Type: Ultraviolet
  • Laser power: 3 watts
  • Marking area:175mmx175mm
  • Markingaccuracy:<0.001mm
  • Repeatability:<0.001mm
  • Marking speed:<10000mm/s
  • Markingdepth:0.015-0.5mm
  • Marking linewidth:0.05-0.01mm
  • Laserwave length:355nm
  • Equipmentsize:671.5*400*572.5(mm)
  • Packing size:730*500*640(mm)
  • Equipment weight:35.25KG
  • Gross weight:48KG
