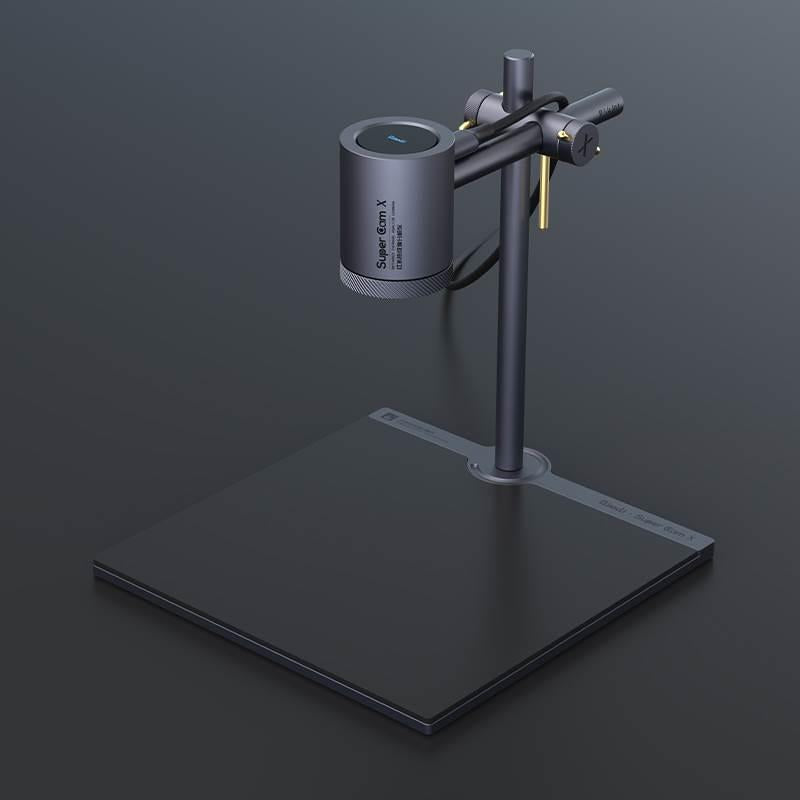

Super Cam X 3D Thermal Imager Camera
Quantity:

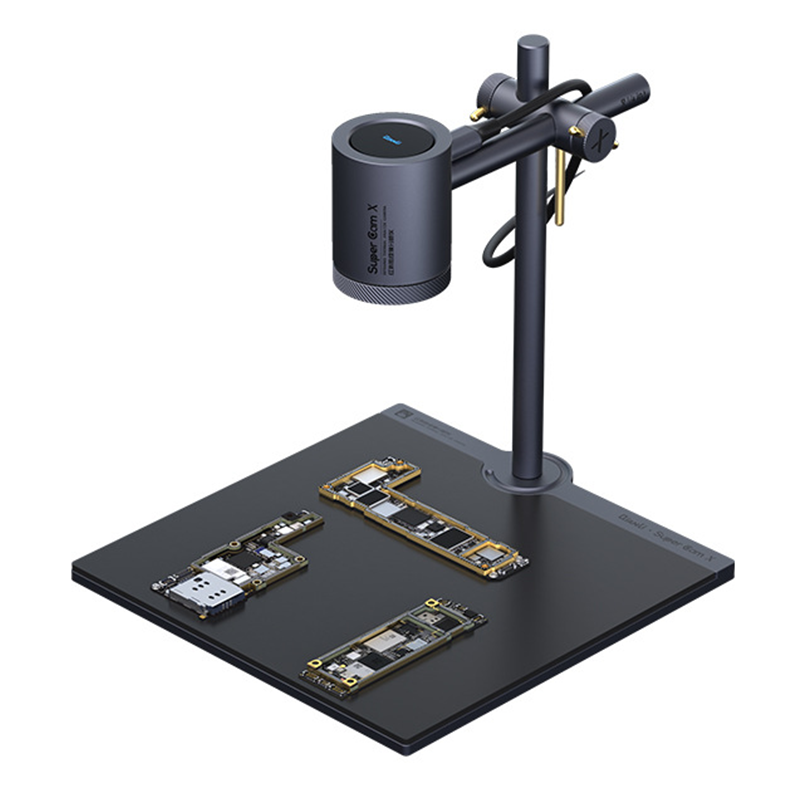

Qianli Toolplus Super Cam X 3D Thermal imager Camera For Mobile Phone Motherboard Repair
Use QIANLI one-button power cord to supply power to the motherboard, adjust the display mode to thermal imaging mode, and enable the software quick check function to detect faulty parts.
Optional network cable to USB interface adapter
It can be connected to the computer USB interface through the adapter, which is more convenient to use and avoids the network cable interface being occupied.
Feature:
- Maximum temperature range
- Test area maximum temperature
- Test area minimum temperature
- Minimum temperature range

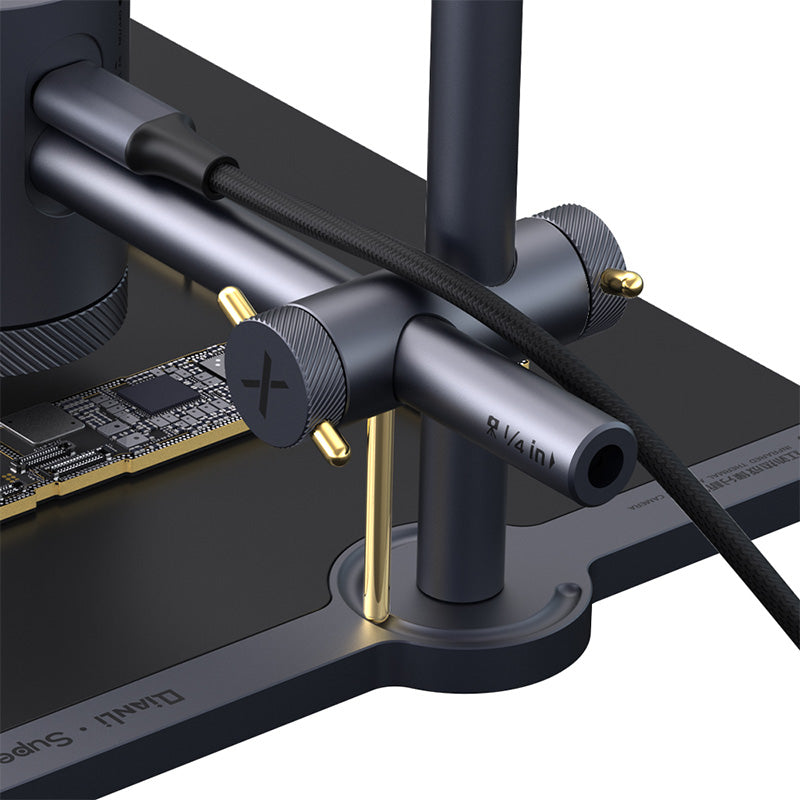

- Can adjust the angle of the visible light camera
- Adjustable fusion of infrared thermal imaging and visible light image is clearer image
- Switchable display mode
- You can capture pictures taken by PCB and save the data of infrared imaging.
- Can record images taken by PCB and save data of infrared thermography
- Turn on quick check to quickly find the hottest place
Specification:
- Resolution: 52000 valid temperature measurement points
- Model: Super Cam X infrared thermal imaging analyzer
- Temperature measurement range: -20°C~120°C
- Input voltage: 5VDC
- Interface type: Type-C, USB
- Storage temperature: -15°C ~ +60°C
- Bracket size: 150mm*160mm*161.5mm
- Product weight: 435g
- Packing size: 180mm*180mm*59mm
Infrared parameters
- detector type: Uncooled Vanadium Oxide Detector
- Resolution: 52000 (260X200)
- wavelength range: 7~14um
- camera angle: 42°X32°
- frame rate: 25hz
- physical properties
- Bracket size: 150mm x 160mm x 161.5mm
- heavy star: 435g

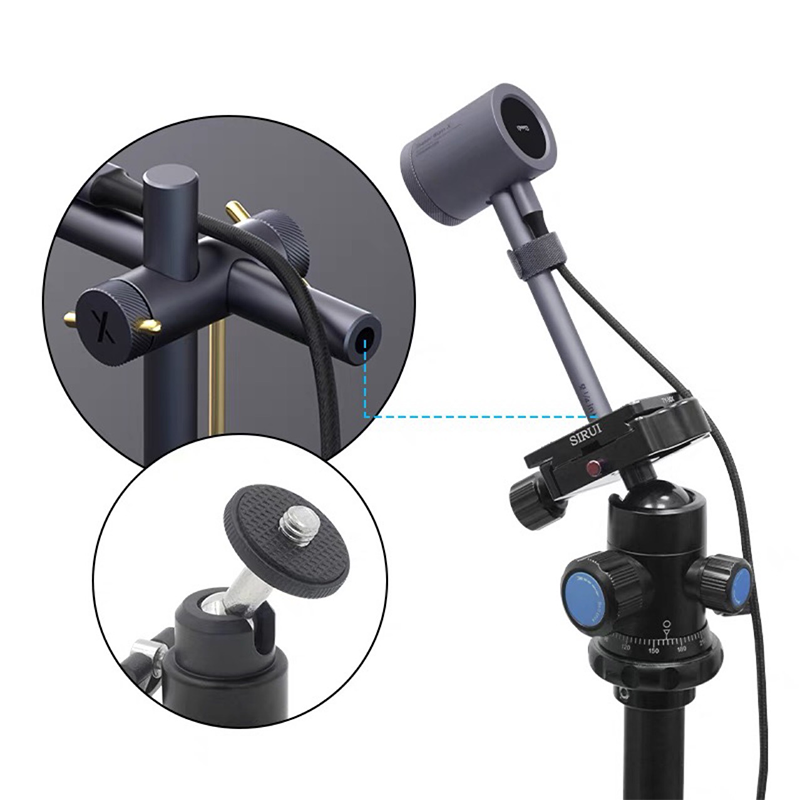

- Install: Removable installation
Power supply
- Input voltage: 5VDC
- Power consumption: <250mw
- Interface and Display Functions
- display mode: Infrared thermal imaging
- Interface Type: Type-C to USB
- Image storage format: JPG (640X480)
- Video storage format: MP4
Temperature measurement performance
- Temperature measurement function: Full range temperature measurement
- Temperature measurement distance: 2mm～∞
- Temperature measurement accuracy: ±5°C or ±5%
- Accurate temperature measurement range: -20°C-120°C
Temperature measurement performance
- Storage temperature range: -15°C-+60°C
- Humidity: 95% relative humidity
