M-Triangel
PG Pro Laser Marking Machine

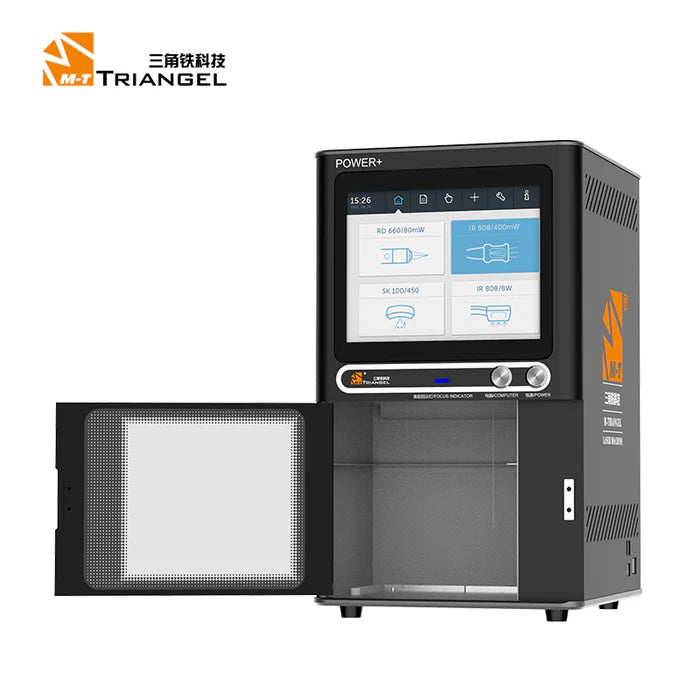

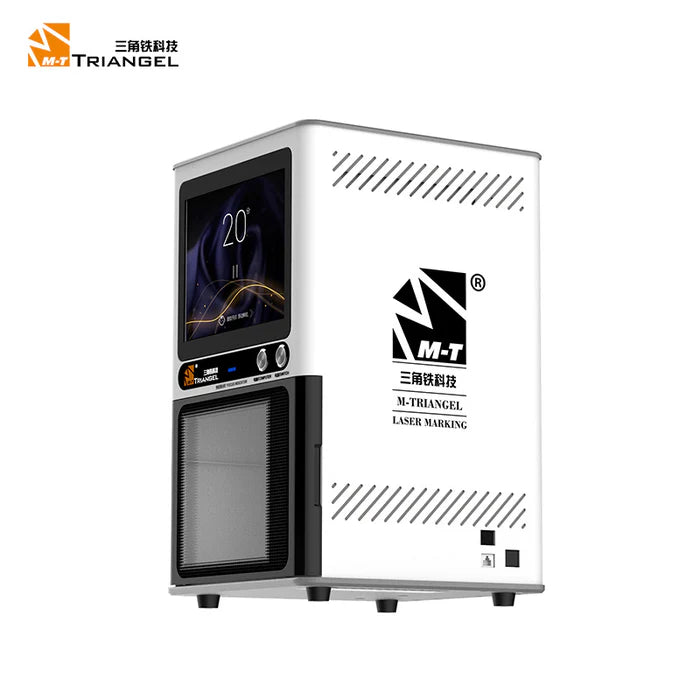

The PG pro/power+ is a cutting-edge back glass separation laser machine. It features a one-piece closed design, intelligent auto-focus capabilities, an integrated large-screen computer, software, and come with a smoke extractor, delivering a completely new user experience.
Key Feature Highlights:
Laser Type |
Fiber Laser |
Laser Power |
8W/20W |
Focus Mode |
Automatic |
Marking Depth |
0.015-0.5mm |
Marking Accuracy |
≤0.001 mm |
Repeat Accuracy |
≤0.001 mm |
Marking Speed |
≤10000 mm/s |
Marking Depth |
0.015-0.5 mm |
Cooling Mode |
built-in air cooling |
Marking Line Width |
0.05-0.01 mm |
Power Supply |
220V/110V±10%, 50Hz±5% |
Ambient Temperature |
-10°c~65 °C |
Net Weight |
21.5KG |
Packing list
- 1 x PG Pro/Pro+ laser machine
- 1 x USB Cable
- 1 x USB Amplifier
- 1 x Transparent ruler
- 2 x Correction paper
- 1 x Computer keyboard
- 1 x Computer mouse
Markable Materials
FAQ
The PG Pro fiber laser marking machine adopts an integrated closed design, is equipped with an intelligent auto-focus system, integrates a large-screen computer and software, provides an intuitive operation interface, and is equipped with a smoke machine to reduce harmful gases and smoke, resulting in a cleaner working environment. and a new user experience.
PG Pro is specially designed for metal engraving and marking. It is suitable for a variety of metal materials, such as gold, silver, copper, aluminum, etc., and can also be used for non-metallic materials such as oxides, coatings, ABS plastics, etc. It is also capable of removing metal back glass, especially suitable for iPhone 8 to iPhone 14 series.
Yes, PG Pro is equipped with an intelligent autofocus function that can automatically adjust the focus according to different workpiece materials and thicknesses, thereby ensuring high-precision marking effects and reducing the need for manual adjustment.
The smoke machine equipped with PG Pro can effectively remove harmful gases and smoke generated during the laser marking process, keep the working environment clean, protect the health of the operator, and at the same time improve the work efficiency of the equipment and the quality of marking.
PG Pro is widely used in many industries, especially suitable for metal processing, electronic product marking, mobile phone repair, jewelry engraving and other fields. It can handle high-precision marking tasks and is suitable for mass production and personalized customization needs.
