M-Triangel

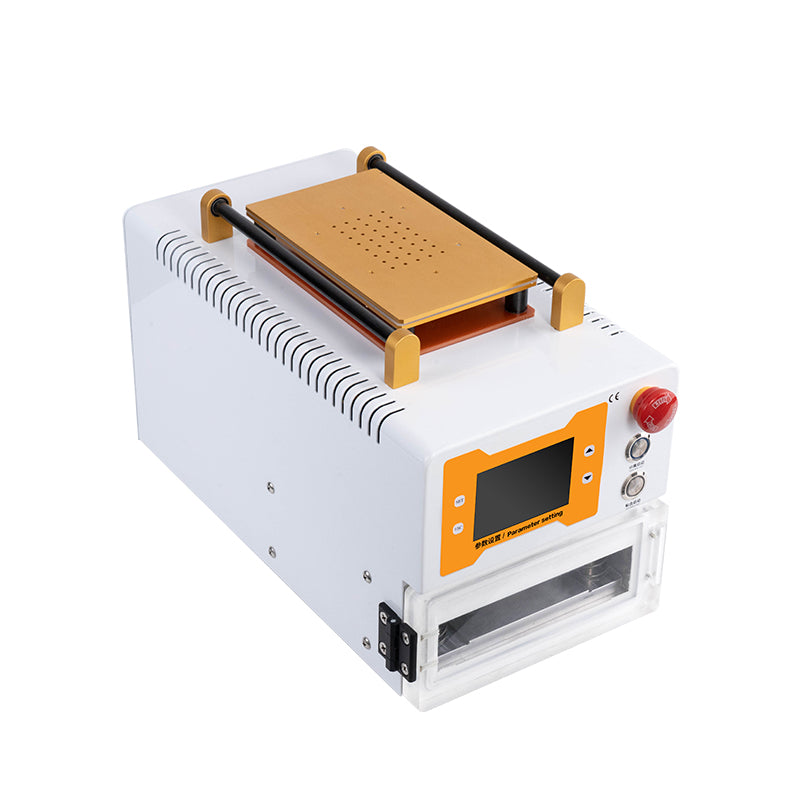

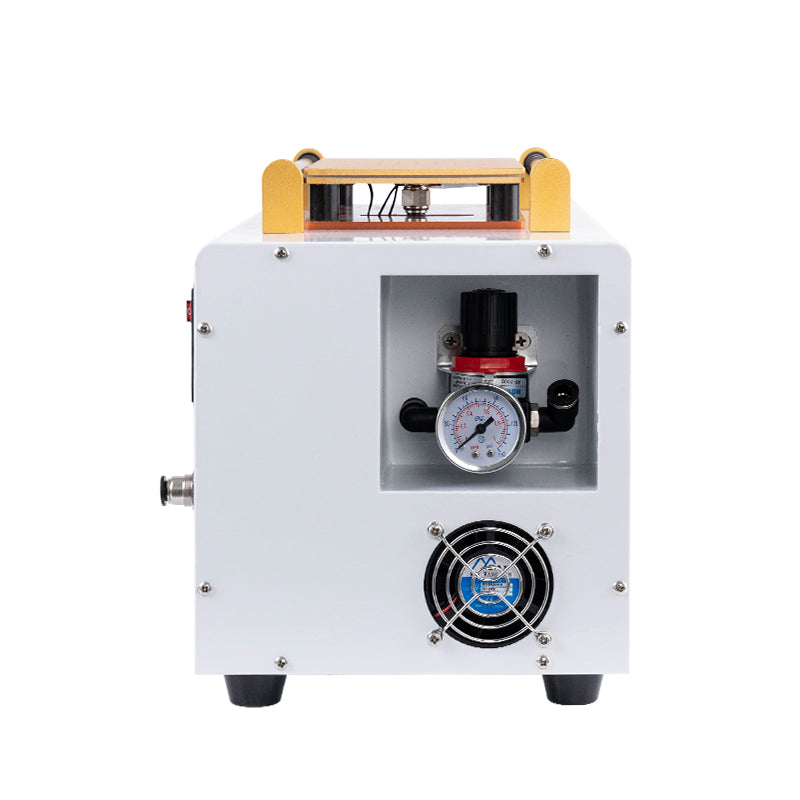

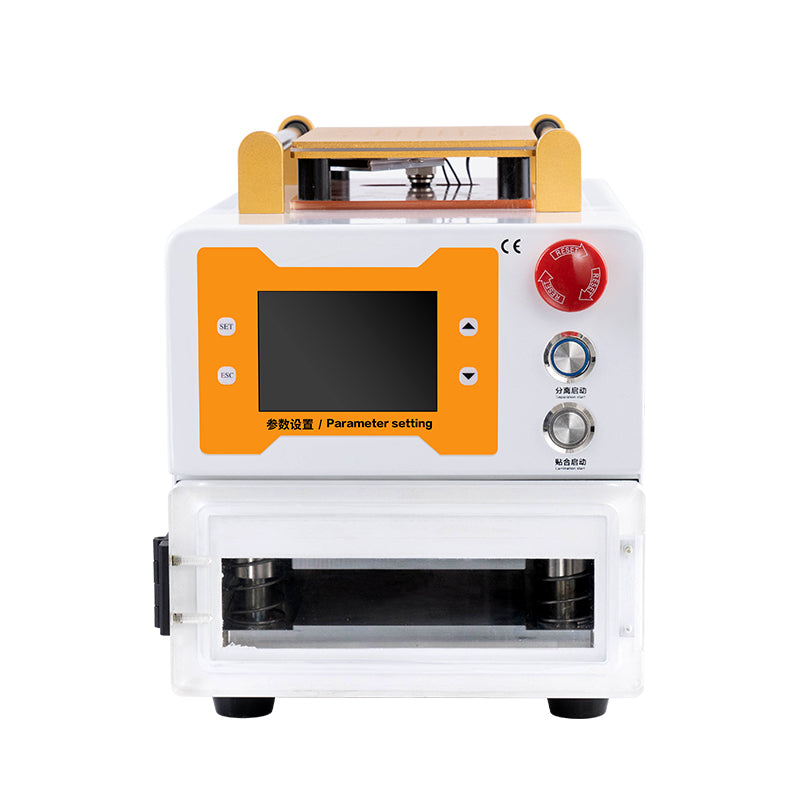

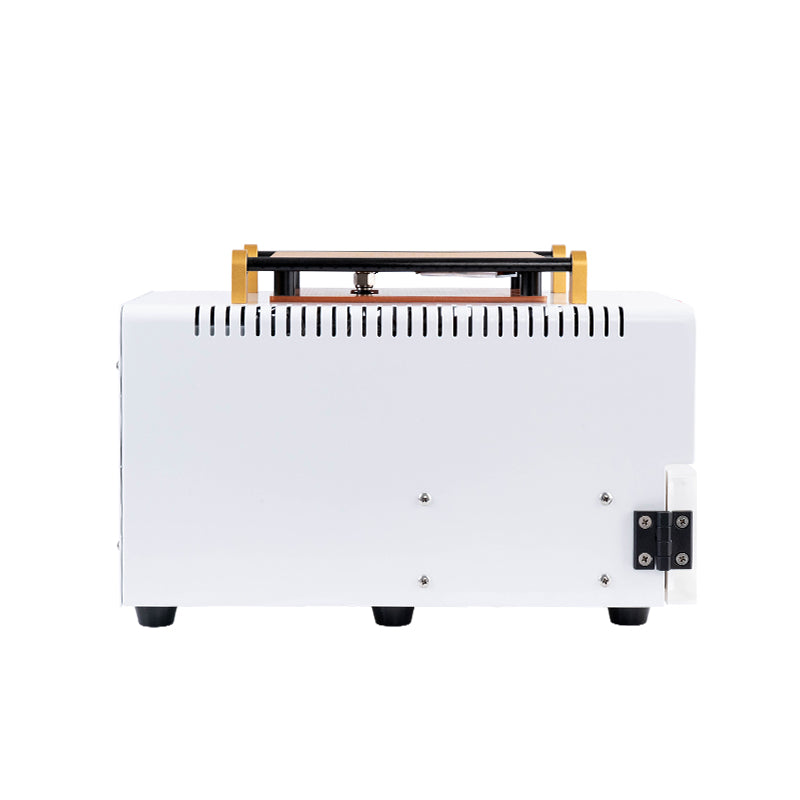

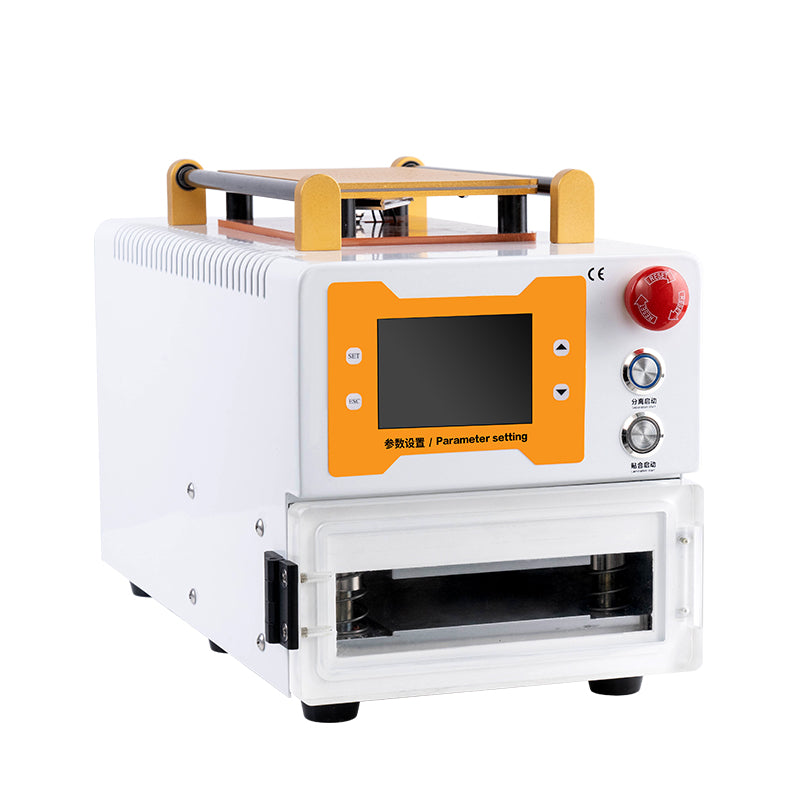

M3 Mini OCA Laminator Machine with Separator
Voltage:110V
Quantity:
M3 oca machine is an innovative design cell phone repair equipment, with LCD separator and OCA laminator 2 in 1 function, it inherits M-Triangel accurate laminating technology and separator technology, it adopts compact body design, more rigorous and practical structure, it is suitable for Android and iPhone devices up to 7 inches LCD repair.
Specification
- Power supply: AC110V, AC220V optional
- Working environment: 30-35 °C, clean and dust-free
- Heating method: constant temperature heating
- Power: 300W
- Suitable size: ≤ 7 inches LCD
- Equipment size: 381.5*200*250(mm³)
- Net weight: 15.26KG
- Gross weight: 19.82KG
- Packing size: 485*306 *320 (mm³)
- Laminating parameters
- Cavity size: depth 100 mm, height 18 mm (7 inches)
- Working temperature: recommended setting 30℃~40℃
- Laminating time: 30S~60S is recommended
- Note that the machine does not come with a compressor
- Note: plug and voltage, we will adapt it according to your shipping address, if you have special requirements, please leave us a message.
