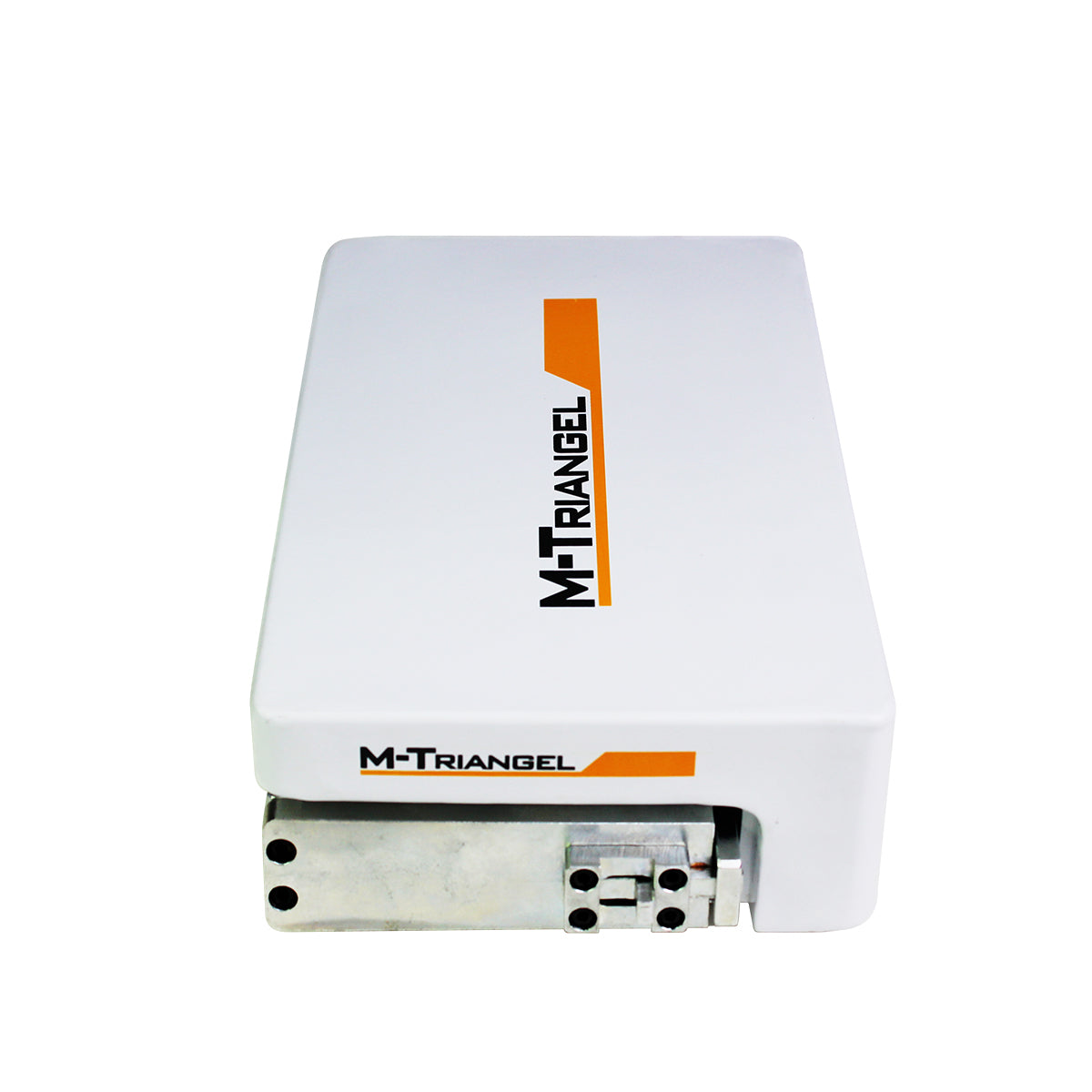

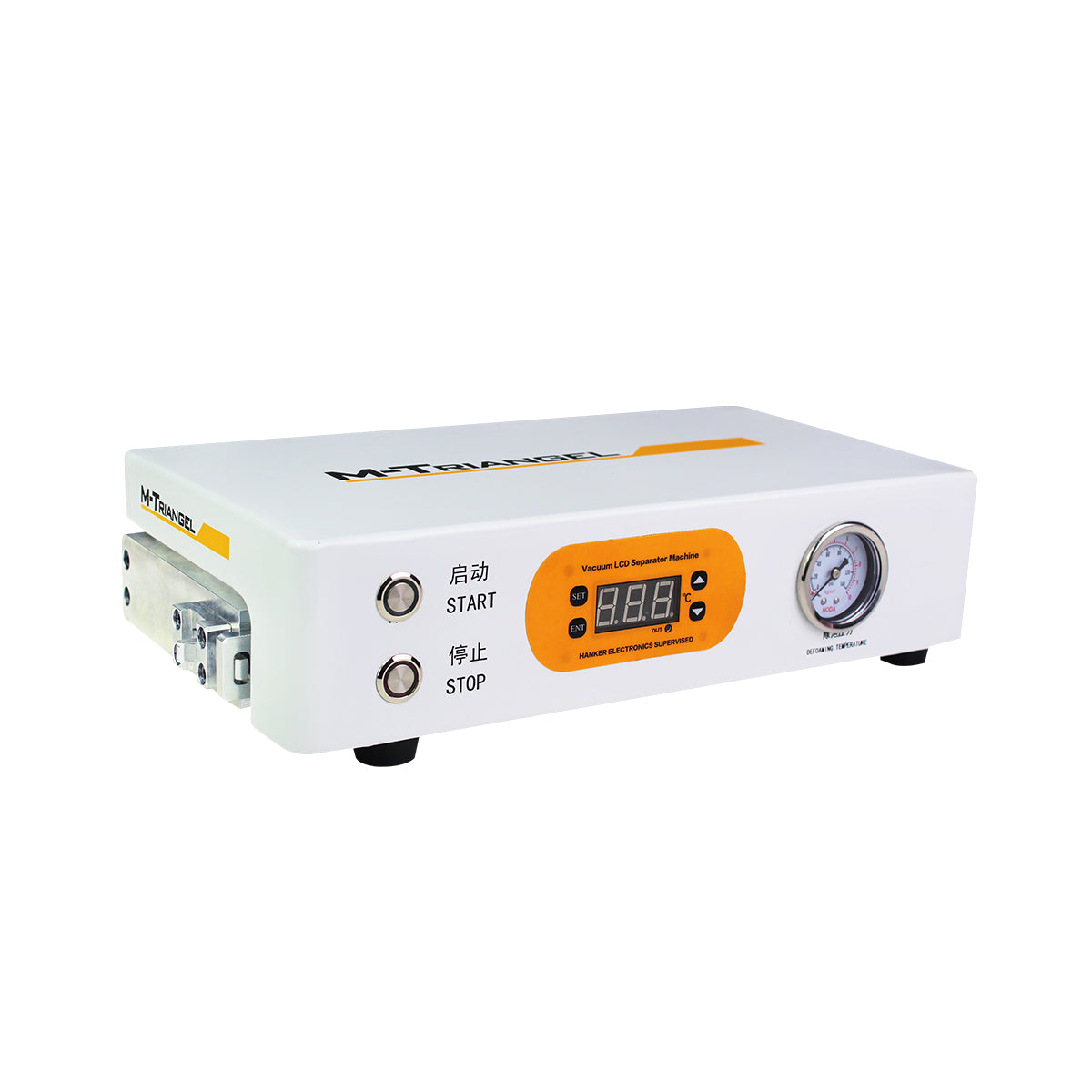

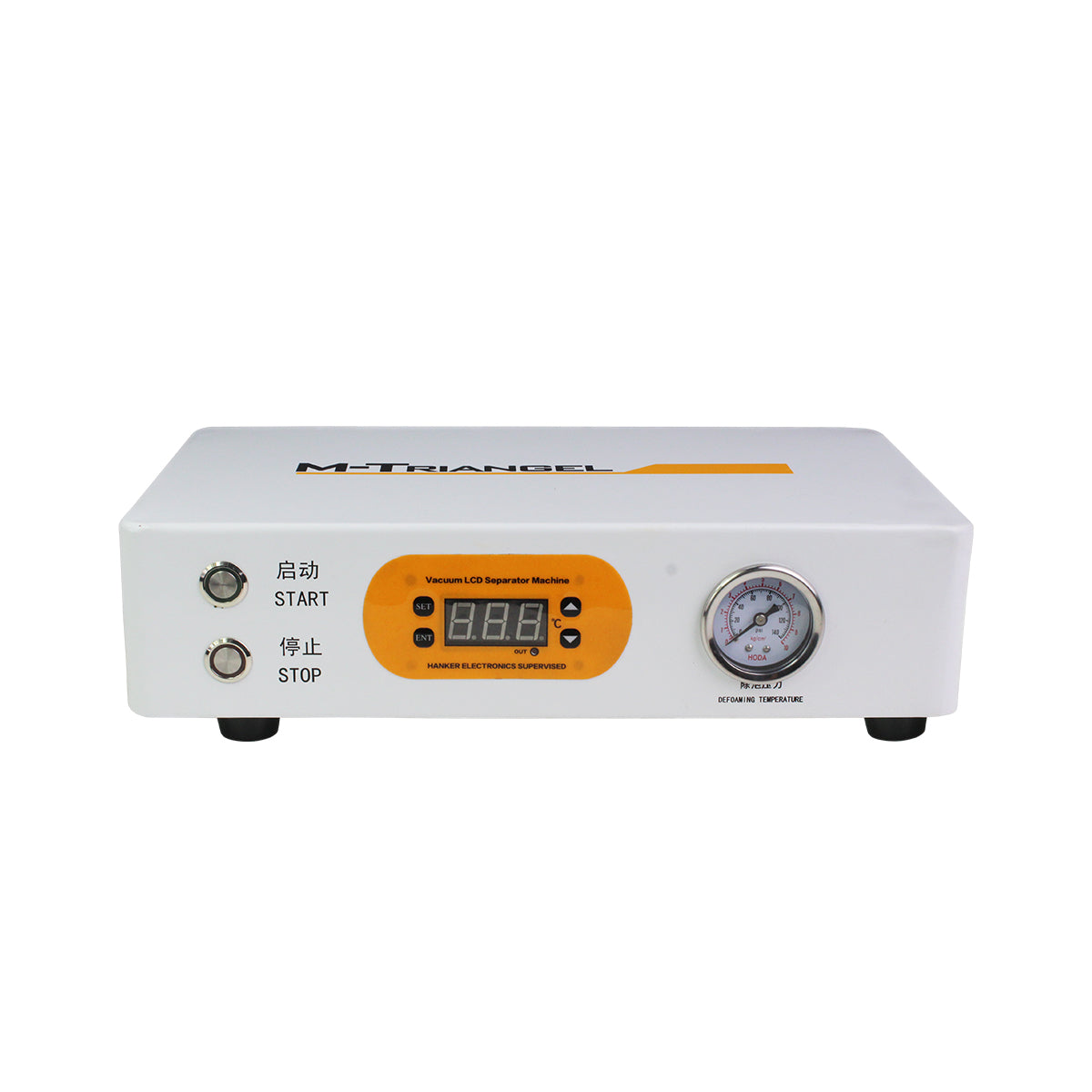

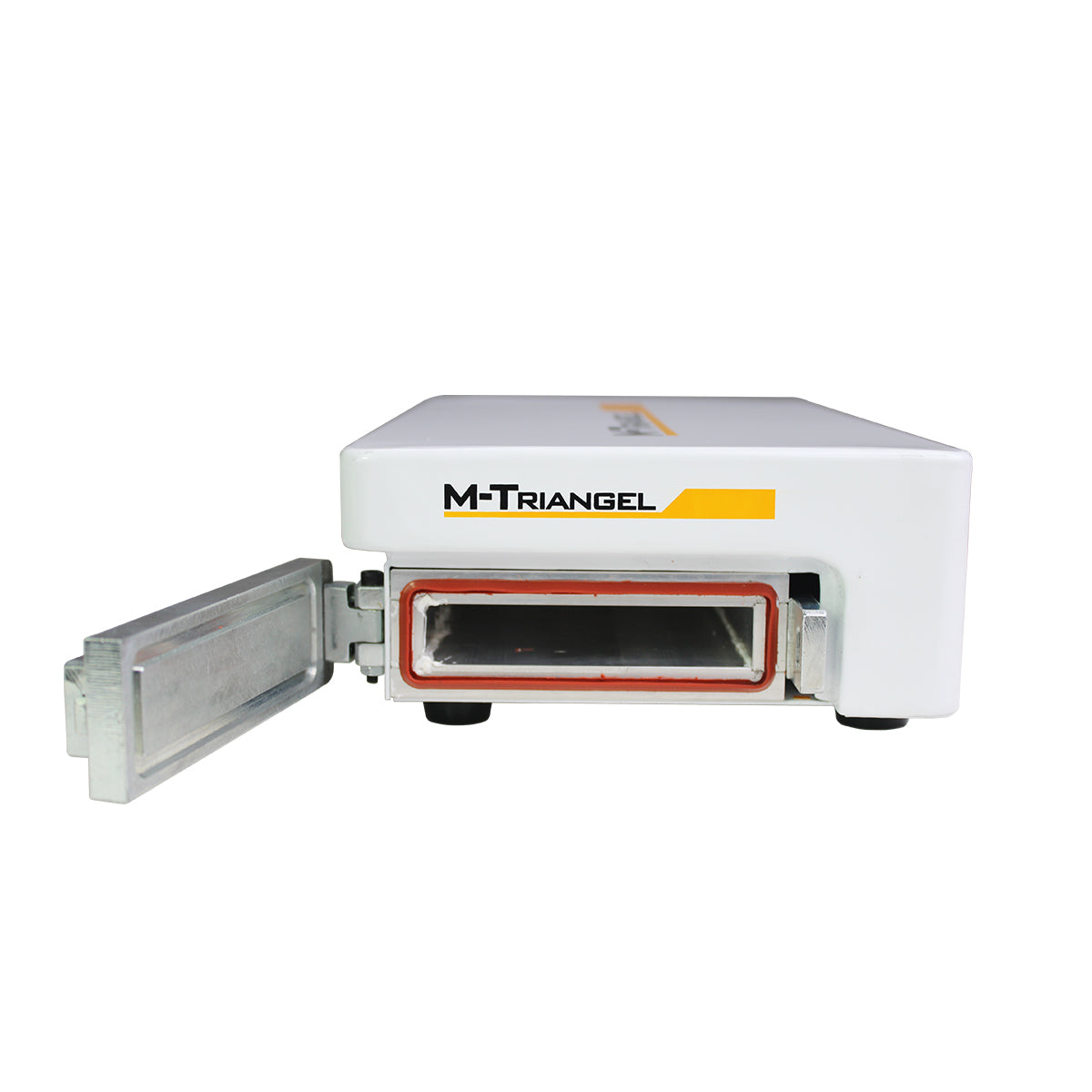

M1 Mini Bubble Remover Machine

M-Triangel mini bubble remover is an efficient and affordable mobile phone LCD repair machine. M1 needs to use air compressor, compatible with displays up to 7 inches, and it only takes 30s to remove air bubbles.

Product Features:

• Suitable For touch mobile phone LCD up to 7 inches
• Three "1 second": One second to pump up, one second to deflate, one second to open and close the hatch.
• It only takes 30 seconds to remove bubbles, with stents in 60 seconds
• High safety standards, all-aluminum manufacturing
• Cost-effective, beautiful and compact design
• High efficiency, stable performance

Specification:

• Voltage input: AC220V/ AC110V
• Suggested defoaming temperature: 30-40°C

• Suggested bubble removal pressure: 100PSI
• constant temperature of board
• Applicable size: up to 7 inches touch LCD
• Equipment size: 350 * 180 * 88 mm
• Equipment weight: 5kg
• Equipment power: 300 w

Bubble parameters

• The depth of the cavity size: 205 mm, 95 mm in diameter, 18 mm (7 inches)
• Working temperature: advice is set to 30℃ - 35 ℃
• Bubble time: it is recommended that 30seconds~1 minute (this time is the most appropriate)

Note: The mini bubble remover must be used with an external air compressor

Packing list:

• 1 x M1 Bubble Remover Machine
• 1 x M1 sheet metal
• 1 x Air Hose (small)
• 1 x Air Hose
• 1 x Fitting
• 2 x Seals
• 1 x Foam
• 1-year warranty

Note: plug and voltage, we will adapt it according to your shipping address, if you have special requirements, please leave us a message.
