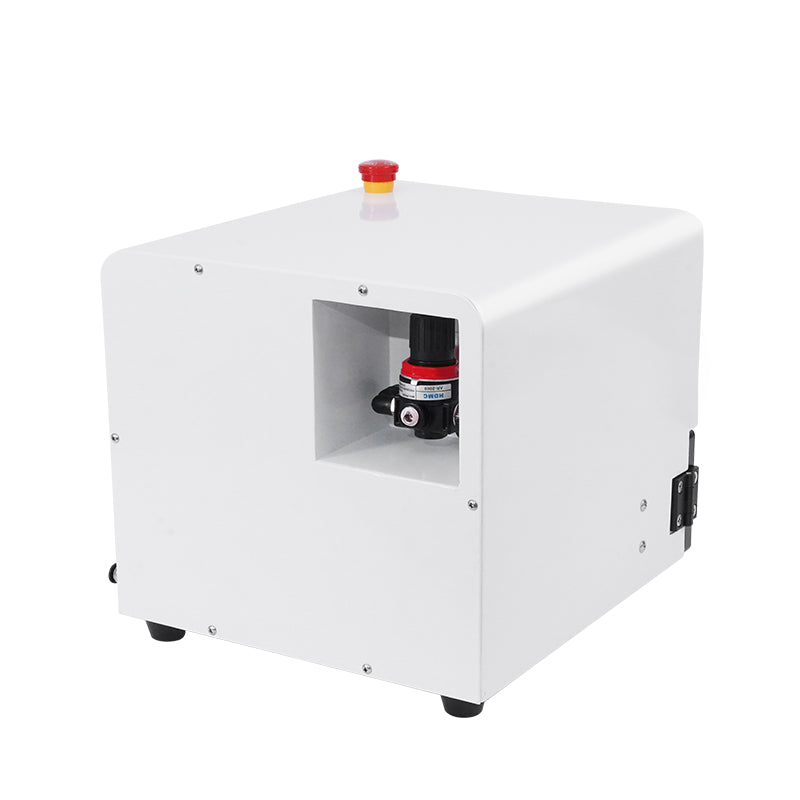

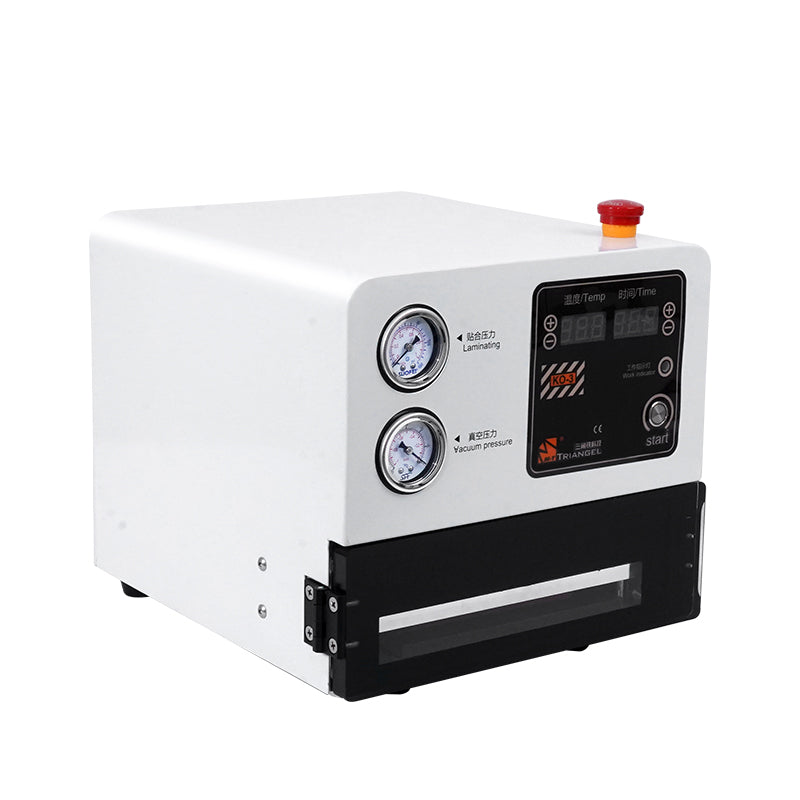

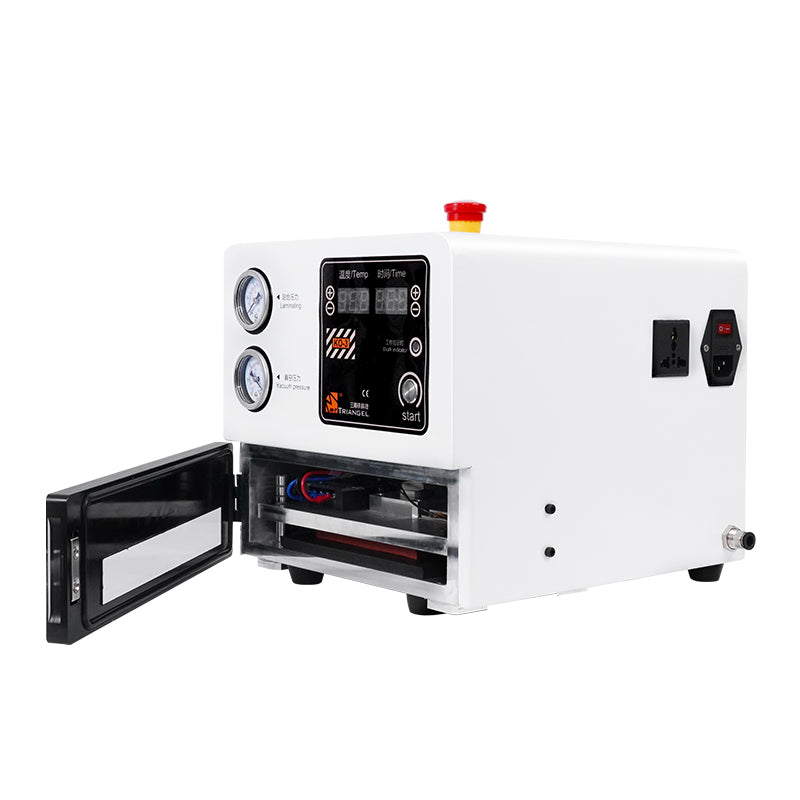

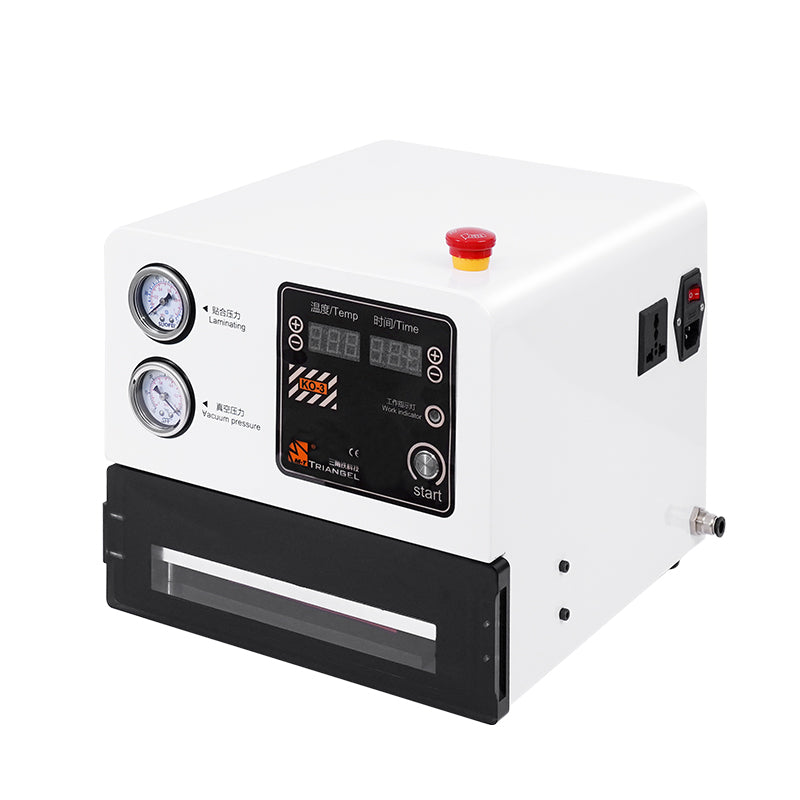

KO-3 Vacuum laminator LCD OCA Laminating Machine

KO-3 is a new generation of cost-effective screen vacuum laminator, which uses an advanced pressure control system to make the body lighter and also ensure the safety of use, and it supports all tablet phone screen refurbishment.

Note: This machine needs to be used with vacuum pump and air compressor, and the working pressure is 0.3Mpa/45PSI. So, it can be compatible with most air compressors.

Specification

• Power supply: AC250V (optional AC110V AC220V)
• Working environment: 20-30°C, clean and dust-free
• Laminating method: flat laminating
• Power: 800W
• Working temperature: set to 40°C~50°C is recommended
• Laminatingtime: Recommended 30S
• Equipment size: 280*311*263 (MM)
• Packing size: 340*375 *320 (MM)
• Net weight: 12.6KG
• Gross weight: 17.7KG
• Laminating size: 190*135(MM)

Packing list:

• 1 x KO-3 Lamination Machine
• 1 x Ventilation tube (small)
• 1 x Ventilation tube
• 1 x laminating pad
• 1-year warranty
