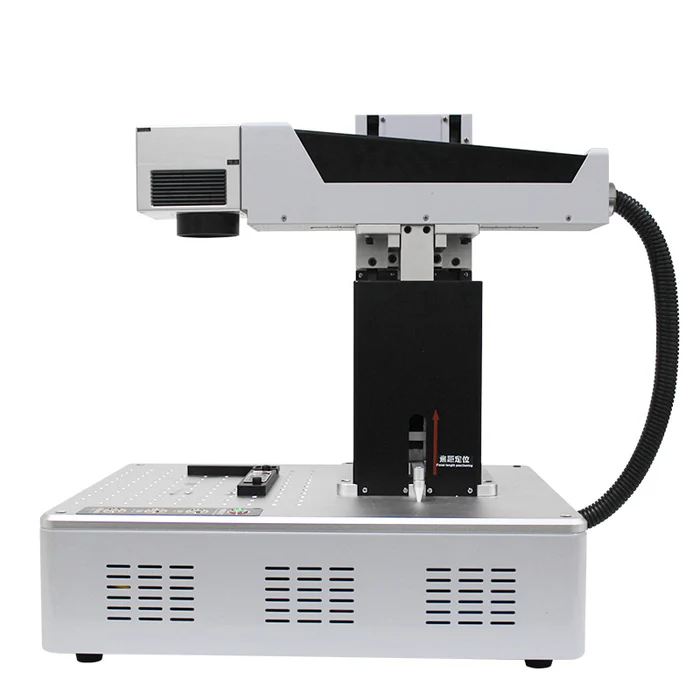

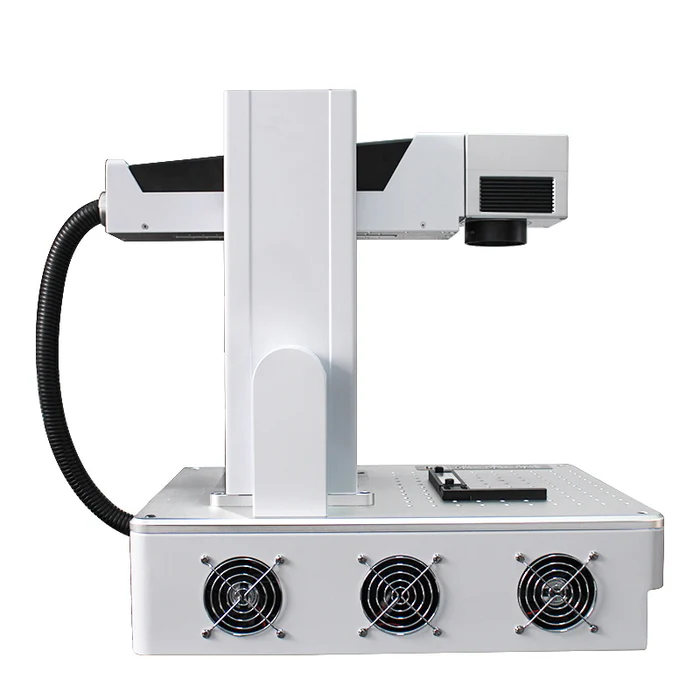

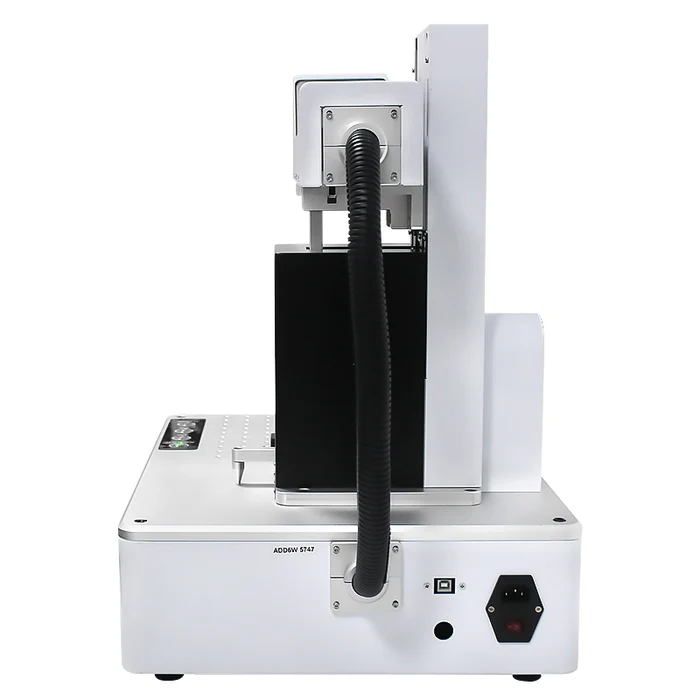

G-oneS Fiber Laser Marking Machine
G-oneS is a 30w fiber laser machine, it adopts autofocus system, designed for metal engraving and marking, suitable for gold, silver, copper and aluminum, oxide, coating, ABS, etc. It is also suitable for removing the back glass of iPhone 8-14series.
Key Feature Highlights:
|
Laser Type |
Fiber Laser |
|
Laser Brand |
Raycus |
|
Laser Power |
30W |
|
Focus |
Automatic |
|
Software |
SeaCAD |
|
Language |
Chinese, English, Spanish, French, German, Italian, Russian, Japanese, Korean, Arabic |
|
Input Voltage |
110V / 220V±22V |
|
Laser Wavelength |
1064nm |
|
Marking Range |
175*175mm |
|
Minimum Character |
0.3mm |
|
Minimum Lline Width |
0.01mm |
|
Marking Speed |
1500mm/s |
|
Power Stability |
±1%rms |
|
Beam Quality |
2 ㎡ |
|
Pulse Repetition Frequency |
Fixed |
|
Cooling Method |
Air-cooled |
|
Standby Power Consumption |
<0.5kw |
|
Net Weight |
48 KG |
|
Packing Size |
800*550*690mm |
Packing list:
- 1 x G-oneS Laser Machine
- 1 x USB Cable
- 1 x USB Amplifier
- 1 x Steel Ruler
- 1 x Transparent Ruler
- 2 x Correction Paper
- 10 x Focusing Sheet
- 1 x Instruction Manual
- 1-Year Warranty
Markable Materials
FAQ
G-oneS is suitable for a variety of metal and non-metal materials, including gold, silver, copper aluminum, oxides, coatings, ABS plastic, etc. It is especially suitable for metal engraving and marking, and can also effectively remove metal back glass, especially for iPhone 8 to iPhone 14 series.
G-oneS is a 30W high-power fiber laser machine that provides stronger engraving and marking capabilities and is suitable for tasks that require high precision and depth.
Yes, G-oneS is equipped with an auto-focus system that can automatically adjust the focus according to the thickness of different workpieces to ensure precise marking effects, especially suitable for high-precision metal engraving.
G-oneS fiber laser machine is suitable for many industries, including mobile phone repair, metal processing, jewelry production, electronic product marking, etc. It can meet the high requirements of fine marking and engraving and is widely used in various metal processing and repair services.
Yes, G-oneS can effectively remove metal back glass, especially suitable for iPhone 8 to iPhone 14 series. This makes it ideal for the mobile phone repair industry, especially when disassembling mobile phones.
