G-oneS 30W Fiber Laser Marking Machine

$2,199.00
Power:30W
Voltage:220V
Quantity:

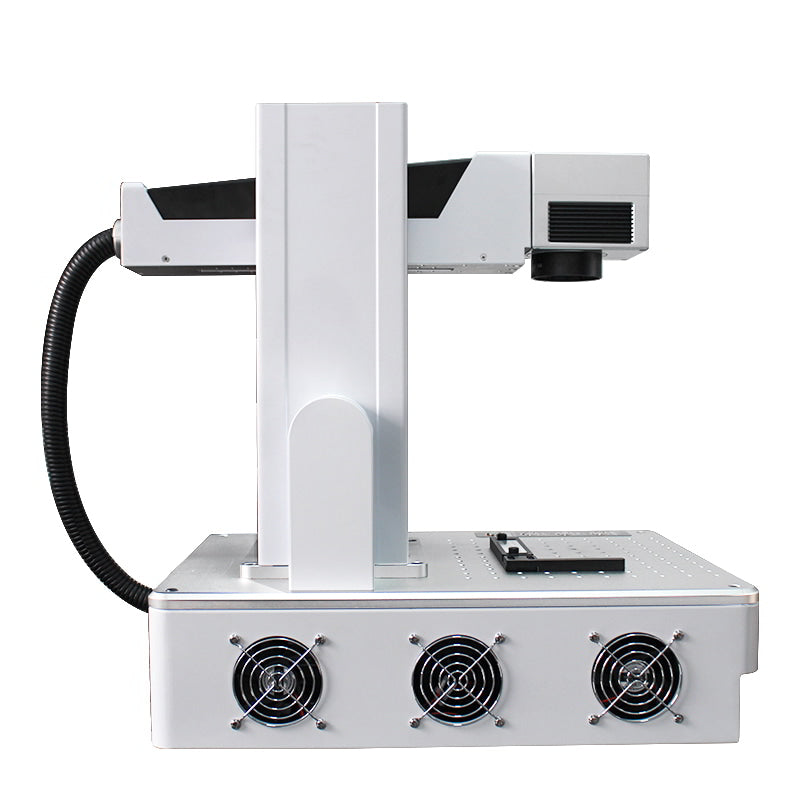

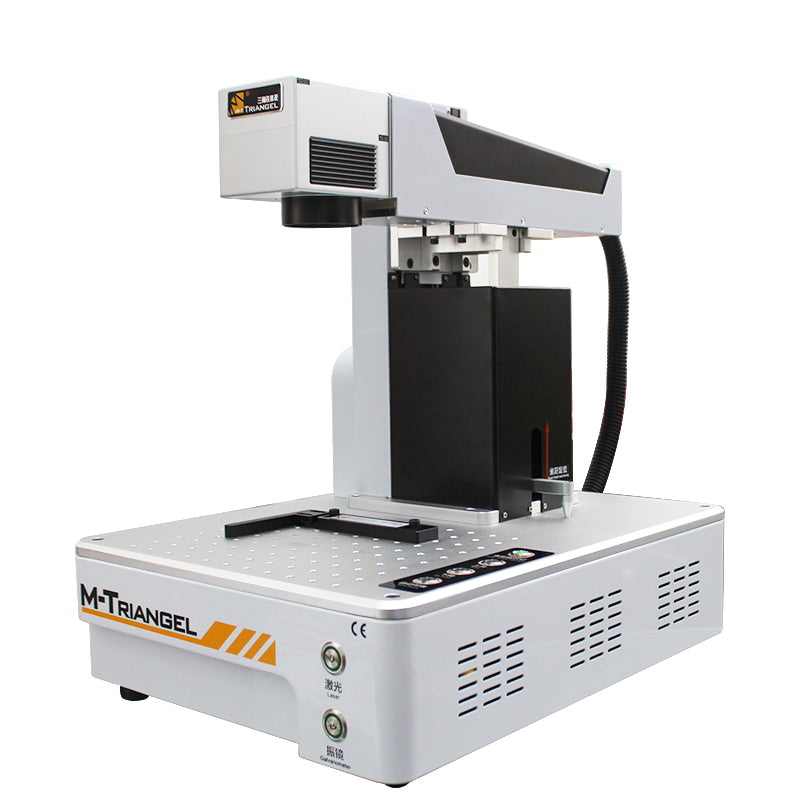

G-oneS is a 30w fiber laser machine, it adopts autofocus system, designed for metal engraving and marking, suitable for gold, silver, copper and aluminum, jewelry, oxide, coating, ABS, etc. It is also suitable for removing the back glass of iPhone 8-14series.

Note: For gold and silver marking, please contact us to customization

Note: This is custom product, after ordering, estimated stocking time within 2 weeks

 G-ones laser



What can M-Triangel G-oneS laser engraving machine do?

What can the laser do

Specification

  • Laser type: Fiber laser
  • Laser brand: Raycus
  • Power: 30W
  • Focus: Automatic
  • Software: SeaCAD
  • Language: Chinese, English, Spanish, French, German, Italian, Russian, Japanese, Korean, Arabic
  • Input voltage: 110V / 220V±22V
  • Wavelength: 1064nm
  • Marking range: 175*175mm
  • Minimum character: 0.3mm
  • Minimum line width: 0.01mm
  • Marking speed: 1500mm/s
  • Power stability: ±1%rms
  • Beam quality: 2 ㎡
  • Pulse repetition frequency: fixed
  • Cooling method: air-cooled
  • Standby power consumption: <0.5kw
  • Net weight: 48 KG
  • Packing size: 800*550*690mm


Q: What is the difference between SeaCAD and EzCAD?
A: SeaCAD supports online updates of mobile drawing templates and is compatible with .ezd files. If you customize EZCAD software just pay extra $150.

Note: power plug, we will adapt it according to your address, if you have special requirements, please leave us a message.
